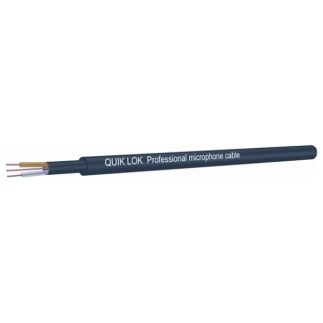

QUIK LOK CM675BK MICROPHONE CABLE BLACK (PER METRE)
Product code
KAG00293
| Model code: | CABLES AND ADAPTER |
| Brand: | QUIK LOK |
| Product details: | CABLES |
Inner conductor 2 x 0.22 (7 x 0.20 Red Copper AWG 22)
Polythene insulation ø 1.45 mm (color - white/red)
Screen Drain Wire 0.22 7 x 0.20 Red Copper + PVC 100% Conductor
PVC sheath ø 6 mm, hardness 65 Shore
Weight 39.5 kg/km
Electrical characteristics
Resistance on the conductor <52 Ohm/Km
Conductor/conductor capacitance 60 pF/m
Insulation resistance >5000 Mohm/Km
Operating temperature -30° / +70°
Available colors Black
Reel length 100 m - 600 m
Polythene insulation ø 1.45 mm (color - white/red)
Screen Drain Wire 0.22 7 x 0.20 Red Copper + PVC 100% Conductor
PVC sheath ø 6 mm, hardness 65 Shore
Weight 39.5 kg/km
Electrical characteristics
Resistance on the conductor <52 Ohm/Km
Conductor/conductor capacitance 60 pF/m
Insulation resistance >5000 Mohm/Km
Operating temperature -30° / +70°
Available colors Black
Reel length 100 m - 600 m
